Engine profile security configuration

Engine profiles are the primary way administrators in H2O AI Engine Manager (AIEM) enforce resource boundaries and operational limits on the engines users create. A profile defines the resource constraints, timeout limits, and configuration rules that apply to every engine created with it. Administrators also control which engine versions and container images users can select. Together, these settings let you apply least-privilege resource governance across a workspace.

This page is a reference for the security-relevant profile, version, and image settings, their defaults, and the recommended values.

Before you begin

• You need an engine admin role (enginemanager-dai-engine-admin, enginemanager-h2o-engine-admin, or enginemanager-notebook-engine-admin) assigned in the workspaces/global workspace. See RBAC roles and permissions for the full permission breakdown.
• You need access to the AIEM REST API or web interface.
• AIEM manages engine profiles, engine versions, and notebook and sandbox images in the workspaces/global workspace, so assign the relevant admin role in the global workspace to the people who manage them. Sandbox engine templates and engine instances are managed per project workspace.

note

AIEM creates no profiles, versions, or images by default. Until an administrator creates them, users cannot create engines. Create at least one profile and one approved version or image per engine type before users start working.

Engine profiles

Each engine type has its own profile schema. Profiles for Driverless AI, H2O-3, and Notebook engines share a common set of resource and access controls, and each type adds settings specific to its engine.

REST API

Manage profiles through the REST API at these endpoints:

• Driverless AI: POST|GET|PATCH|DELETE /v1/workspaces/global/daiEngineProfiles[/{profile}]
• H2O-3: POST|GET|PATCH|DELETE /v1/workspaces/global/h2oEngineProfiles[/{profile}]
• Notebook: POST|GET|PATCH|DELETE /v1/workspaces/global/notebookEngineProfiles[/{profile}]

See the REST API reference for full request and response schemas.

Resource constraints

Resource constraints bound how much compute an engine can request. Each constraint is a structured value with a min, a max, and a default. Numeric constraints also accept an optional cumulative_max that caps the total across all of a user's engines using that profile. When you leave max unset, the value is unlimited, so always set an explicit max to prevent resource exhaustion.

Constraint	Engine types	Description
cpu_constraint	Driverless AI, H2O-3, Notebook	CPU core allocation range.
gpu_constraint	Driverless AI, H2O-3, Notebook	GPU allocation range. Constrain this to control access to expensive GPU resources.
memory_bytes_constraint	Driverless AI, H2O-3, Notebook	Memory allocation range.
storage_bytes_constraint	Driverless AI, Notebook	Persistent storage allocation range.
node_count_constraint	H2O-3	Number of nodes in the H2O-3 cluster. Controls distributed compute scale.

Each resource constraint is a required field when you create a profile.

Duration and concurrency limits

Duration and concurrency limits prevent idle and abandoned engines from consuming resources indefinitely. Set them to enforce cost and resource governance.

Setting	Engine types	Type	Default	Description
max_idle_duration_constraint	Driverless AI, H2O-3, Notebook	Duration range (min/max/default)	Required	Pauses an engine (Driverless AI, Notebook) or terminates it (H2O-3, which has no pause) after it is idle for the configured duration.
max_running_duration_constraint	Driverless AI, H2O-3, Notebook	Duration range (min/max/default)	Required	Pauses an engine (Driverless AI, Notebook) or terminates it (H2O-3, which has no pause) after it has run for the configured duration.
max_unused_duration	Driverless AI	Duration	Unset (no limit)	Auto-deletes an engine that stays in a paused or failed state for this duration.
max_non_interaction_duration	Driverless AI	Duration	Unset (not applied)	When set, a Driverless AI engine is auto-paused only if it is idle and has also had no system interaction for this duration.
max_running_engines	Driverless AI, H2O-3, Notebook	Integer	Unset (unlimited)	Maximum number of running engines per user for this profile.

tip

Set max_running_engines to a limit appropriate for your organization to prevent a single user from monopolizing workspace resources, and set max_unused_duration on Driverless AI profiles to clean up abandoned engines automatically.

Driverless AI configuration controls

Driverless AI profiles add settings that govern whether and how users can change Driverless AI configuration (config.toml). These settings exist only on Driverless AI profiles.

Setting	Type	Default	Description
config_editability	Enum: CONFIG_EDITABILITY_DISABLED, CONFIG_EDITABILITY_BASE_CONFIG_ONLY, CONFIG_EDITABILITY_FULL	None — required	Controls whether users can change Driverless AI configuration parameters.
configuration_override	Map	Empty	Configuration that overrides user settings. Users cannot change these values.
base_configuration	Map	Empty	Default configuration that a user can override when config_editability allows it.
triton_enabled	Boolean	false	Enables the built-in Triton inference server in the Driverless AI engine.

config_editability is a required field with no default value — you must set it to one of the three values on every Driverless AI profile:

• CONFIG_EDITABILITY_DISABLED — users cannot change any configuration.
• CONFIG_EDITABILITY_BASE_CONFIG_ONLY — users can change only the keys in base_configuration.
• CONFIG_EDITABILITY_FULL — users can change any configuration value. This is the most permissive option.

danger

CONFIG_EDITABILITY_FULL lets users override Driverless AI configuration freely. Set config_editability to CONFIG_EDITABILITY_DISABLED or CONFIG_EDITABILITY_BASE_CONFIG_ONLY unless users genuinely need full configuration control, and use configuration_override to enforce any security-relevant values that users must not change.

Profile access restrictions

By default, any user with access to a workspace can use any enabled profile in it. Restrict a profile to specific OIDC roles to limit who can create engines with sensitive resource allocations.

Setting	Type	Default	Description
assigned_oidc_roles_enabled	Boolean	false	When true, AIEM checks assigned_oidc_roles before letting a user use the profile.
assigned_oidc_roles	List of strings	Empty	The OIDC roles allowed to use the profile when assigned_oidc_roles_enabled is true.
enabled	Boolean	false	When set to false, the profile is turned off and cannot be used to create engines.

Pod-level controls

Profiles can inject Kubernetes pod configuration into the engines they create. Review these settings carefully, because they change how engine pods are scheduled and what runs alongside them.

Setting	Engine types	Description
yaml_pod_template_spec	Driverless AI, H2O-3, Notebook	A custom PodTemplateSpec merged into the engine pod. Can add sidecars, tolerations, or node selectors.
yaml_gpu_tolerations	Driverless AI, H2O-3, Notebook	GPU node scheduling tolerations applied when the engine requests a GPU.
gpu_resource_name	Driverless AI, H2O-3, Notebook	The Kubernetes GPU resource name (for example, nvidia.com/gpu). When unset, the server applies a default value.
data_directory_storage_class	Driverless AI	The Kubernetes storage class for the Driverless AI data directory. When unset, the cluster's default storage class is used.
storage_class_name	Notebook	The Kubernetes storage class for notebook persistent storage. When unset, the cluster's default storage class is used.

H2O-3 runtime options

H2O-3 profiles add settings that pass extra options to the H2O-3 runtime. Review them for security-relevant flags.

Setting	Type	Description
java_classpath	String	Extra Java classpath for the H2O-3 process. Review for untrusted JAR files.
java_options	String	Extra command-line options passed to Java. Review for debug or remote-access flags.
h2o_options	String	Extra command-line options passed to H2O-3.

Notebook git sync

Notebook profiles can sync a git repository into each notebook when the engine is created. Sync only trusted repositories, because synced content runs in the user's notebook environment.

Setting	Type	Default	Description
sync_git_repository_enabled	Boolean	false	Turns on git repository sync for notebooks created with the profile.
git_repository	String	Empty	The git repository URL to sync. Restrict to trusted sources.
git_ref	String	Unset (server applies HEAD)	The git revision (branch, tag, or commit hash) to check out. Pin to a specific ref for reproducibility.
git_directory_name	String	Example	The directory in the user's home folder where AIEM syncs the repository.

Engine versions and images

Administrators control which engine software versions and container images users can select. Curate these lists to make sure users deploy only approved software.

REST API

Manage versions and images through the REST API at these endpoints:

• DAI versions: POST|GET|PATCH|DELETE /v1/workspaces/global/daiEngineVersions[/{version}], :assignAliases
• H2O versions: POST|GET|PATCH|DELETE /v1/workspaces/global/h2oEngineVersions[/{version}], :assignAliases
• Notebook images: POST|GET|PATCH|DELETE /v1/workspaces/global/notebookEngineImages[/{image}]
• Sandbox images: POST|GET|PATCH|DELETE /v1/workspaces/global/sandboxEngineImages[/{image}]

See the REST API reference for full request and response schemas.

Resource	Engine type	Admin operations
DAI engine versions	Driverless AI	Create, update, delete, and assign aliases.
H2O engine versions	H2O-3	Create, update, delete, and assign aliases.
Notebook engine images	Notebook	Create, update, delete, and turn on or off.
Sandbox engine images	Sandbox	Create, update, delete, and turn on or off.
Sandbox engine templates	Sandbox	Create, update, delete, and turn on or off.

Apply these practices to keep the catalog secure:

• Deprecate outdated versions. Set the deprecated field to true on a version that should no longer be used. Users cannot create new engines with a deprecated version or upgrade an engine to it; engines already running on it are unaffected.
• Use aliases to guide users. Assign aliases such as latest and stable to approved versions so users select a known-good version. Aliases are a field on the version; assign them with the version's :assignAliases operation.
• Turn off images you do not need. A notebook or sandbox image, or a sandbox template, must have enabled set to true before users can create engines with it. Leave unneeded images and templates turned off.

Sandbox engine templates

Sandbox engine templates define fixed resource allocations and the environment for sandbox engines. Set conservative limits and review the environment for sensitive values.

REST API

Manage sandbox templates through the REST API at: POST|GET|PATCH|DELETE /v1/workspaces/{workspace}/sandboxEngineTemplates[/{template}]

Unlike profiles, versions, and images, sandbox templates are managed per project workspace, not in the global workspace.

Setting	Type	Default	Description
milli_cpu_request, milli_cpu_limit	Integer (milliCPU)	Unset	CPU request and limit. Set a limit to prevent resource exhaustion.
memory_bytes_request	Integer	Unset	Memory request.
memory_bytes_limit	Integer	Required	Memory limit. Always set to prevent memory exhaustion.
storage_bytes	Integer	Unset	Ephemeral storage limit. Set to prevent disk exhaustion.
gpu_resource, gpu	String, integer	Unset	The Kubernetes GPU resource name and the number of GPU units. Allocate GPUs only to templates that need them.
max_idle_duration	Duration	Required	Auto-terminates the sandbox engine after this idle duration. A value of 0s means no idle limit.
max_running_duration	Duration	Required	Auto-terminates the sandbox engine after this running duration.
environmental_variables	Map	Empty	Environment variables injected into the sandbox. Review for sensitive values; do not include secrets.
yaml_pod_template_spec	String (YAML)	Empty	A custom PodTemplateSpec merged into the sandbox pod. Review for security implications.
enabled	Boolean	false	When set to false, the template is turned off and cannot be used to create sandbox engines.

Secure defaults and recommendations

Use the following table as a hardening checklist when you create profiles, versions, and images. Most security-relevant limits are optional or required-with-no-default, so apply them deliberately.

Setting	Default	Recommended
Engine profiles	None created	Create a profile per engine type with conservative resource constraints before users create engines.
Engine versions and images	None configured	Create an approved set; deprecate outdated versions; turn off images you do not need.
config_editability (Driverless AI)	None — required	Set to CONFIG_EDITABILITY_DISABLED or CONFIG_EDITABILITY_BASE_CONFIG_ONLY unless users need full configuration control.
assigned_oidc_roles_enabled	false	Turn on for sensitive profiles and list the allowed roles in assigned_oidc_roles.
max_running_engines	Unset (unlimited)	Set a per-user limit to prevent resource monopolization.
max_unused_duration (Driverless AI)	Unset	Set so AIEM cleans up paused or failed engines automatically.
Sandbox template environmental_variables	Empty	Review for secrets; keep sensitive values out of templates.

Verify current configuration

Administrators can review the current configuration through the AIEM REST API or the web interface. The following requests list profiles, versions, and images so you can compare them against your organization's requirements. Replace ENGINEMANAGER_URL with your AIEM host, TOKEN with a valid bearer token, and WORKSPACE with the target workspace ID (for example, my-project).

List engine profiles to verify resource constraints, duration limits, and config_editability:

curl -H "Authorization: Bearer $TOKEN" \
  https://ENGINEMANAGER_URL/v1/workspaces/global/daiEngineProfiles

curl -H "Authorization: Bearer $TOKEN" \
  https://ENGINEMANAGER_URL/v1/workspaces/global/h2oEngineProfiles

curl -H "Authorization: Bearer $TOKEN" \
  https://ENGINEMANAGER_URL/v1/workspaces/global/notebookEngineProfiles

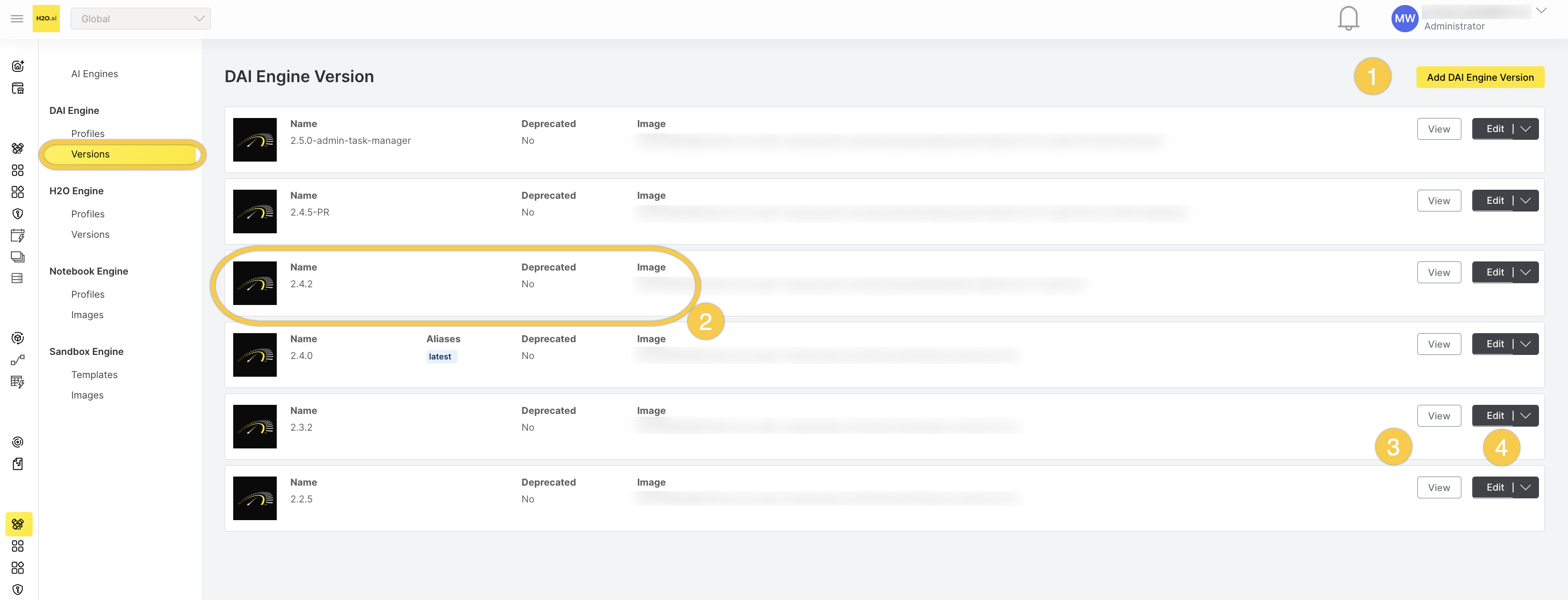

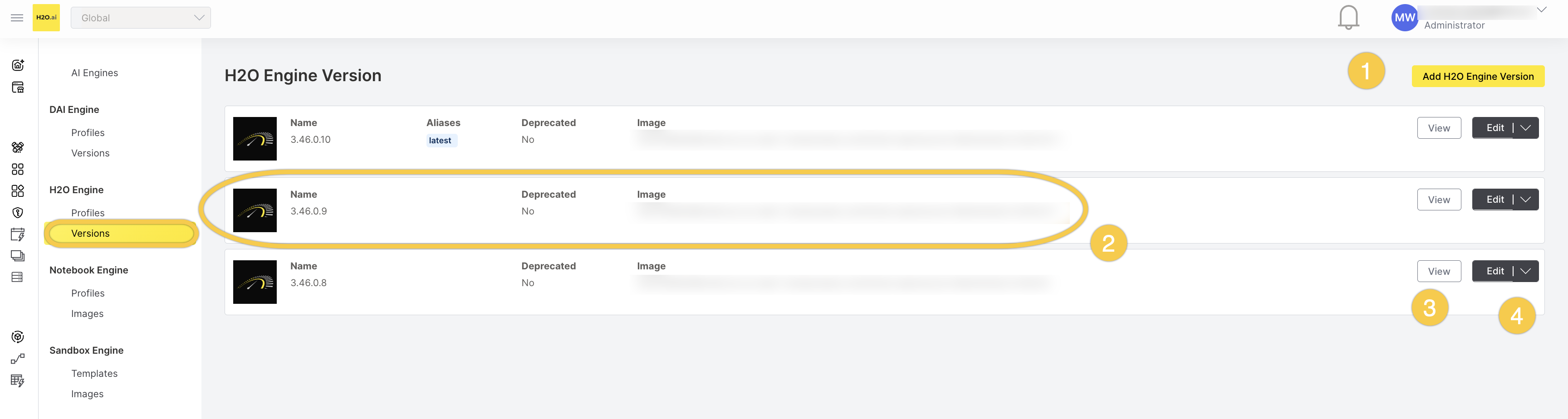

List engine versions to verify that only approved versions are present and that outdated ones are deprecated:

curl -H "Authorization: Bearer $TOKEN" \
  https://ENGINEMANAGER_URL/v1/workspaces/global/daiEngineVersions

curl -H "Authorization: Bearer $TOKEN" \
  https://ENGINEMANAGER_URL/v1/workspaces/global/h2oEngineVersions

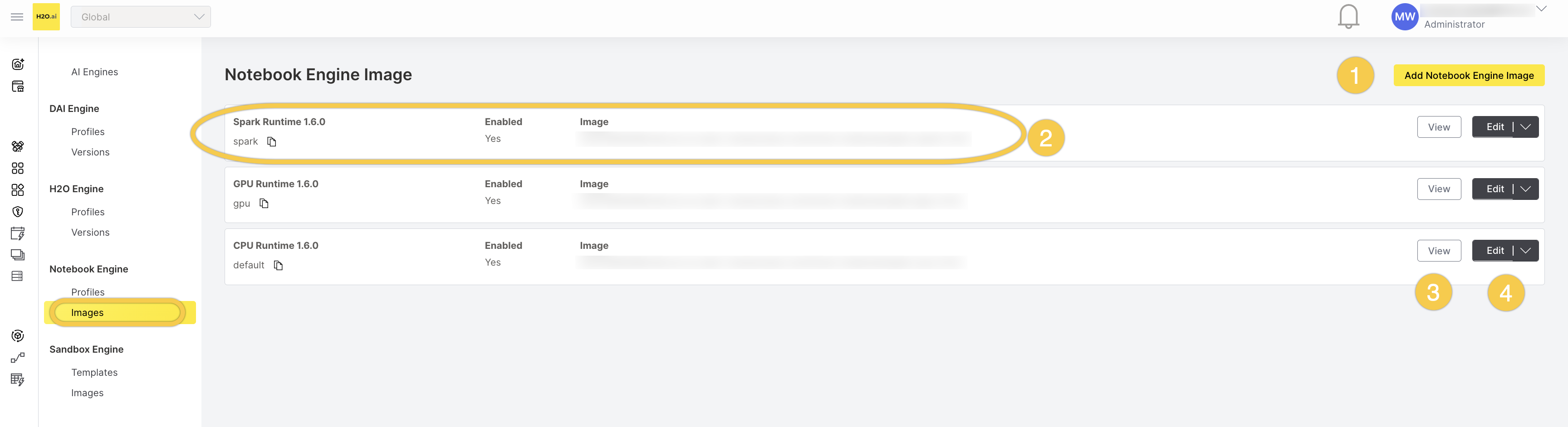

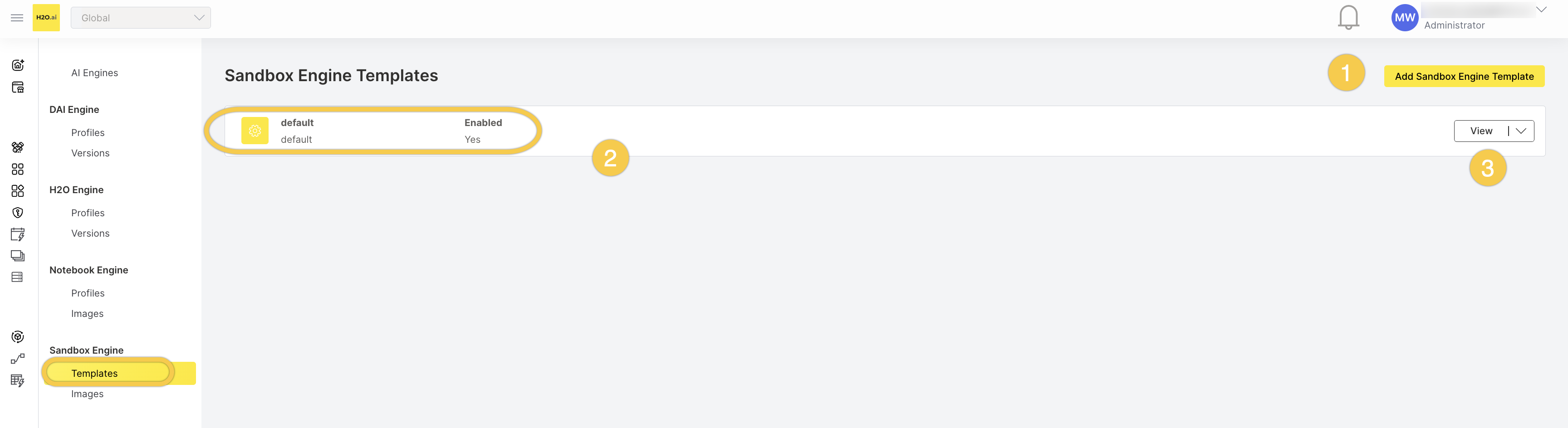

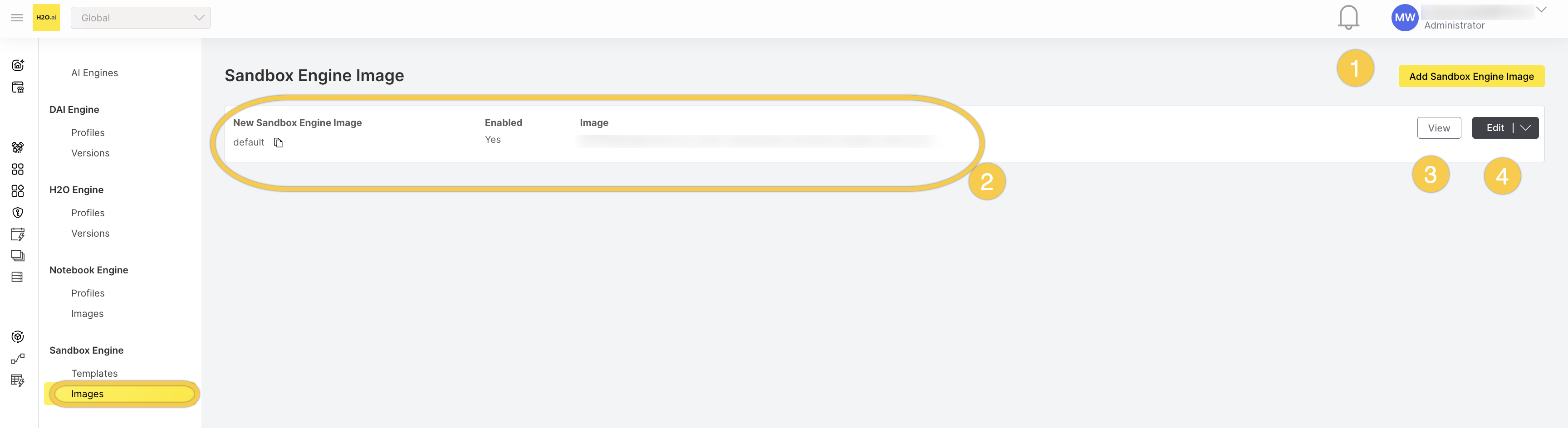

List notebook and sandbox images, and sandbox templates, to verify that only approved images are turned on and that templates set an idle limit and carry no secrets in their environment variables:

curl -H "Authorization: Bearer $TOKEN" \
  https://ENGINEMANAGER_URL/v1/workspaces/global/notebookEngineImages

curl -H "Authorization: Bearer $TOKEN" \
  https://ENGINEMANAGER_URL/v1/workspaces/global/sandboxEngineImages

curl -H "Authorization: Bearer $TOKEN" \
  https://ENGINEMANAGER_URL/v1/workspaces/WORKSPACE/sandboxEngineTemplates

note

Engine profiles, engine versions, and notebook and sandbox images are managed in the global workspace, so the preceding requests use workspaces/global. Sandbox templates and engine instances are per workspace, so replace WORKSPACE with the workspace you want to inspect.
