Morris Sensitivity Analysis Explainer Demo

[13]:

import os
import logging

import datatable
import daimojo

from h2o_sonar import interpret
from h2o_sonar.lib.api import commons
from h2o_sonar.lib.api import explainers
from h2o_sonar.explainers import morris_sa_explainer as explainer
from h2o_sonar.lib.api.models import ModelApi

[14]:

# explainer description
interpret.describe_explainer(explainer.MorrisSensitivityAnalysisExplainer)

[14]:

{'id': 'h2o_sonar.explainers.morris_sa_explainer.MorrisSensitivityAnalysisExplainer',
 'name': 'MorrisSensitivityAnalysisExplainer',
 'display_name': 'Morris Sensitivity Analysis',
 'tagline': 'MorrisSensitivityAnalysisExplainer.',
 'description': 'Morris sensitivity analysis (SA) explainer provides Morris sensitivity analysis based feature importance which is a measure of the contribution of an input variable to the overall predictions of the model. In applied statistics, the Morris method for global sensitivity analysis is a so-called one-step-at-a-time method (OAT), meaning that in each run only one input parameter is given a new value. This explainer is based based on InterpretML library - see http://interpret.ml',
 'brief_description': 'MorrisSensitivityAnalysisExplainer.',
 'model_types': ['iid'],
 'can_explain': ['regression', 'binomial'],
 'explanation_scopes': ['global_scope'],
 'explanations': [{'explanation_type': 'global-feature-importance',
   'name': 'GlobalFeatImpExplanation',
   'category': '',
   'scope': 'global',
   'has_local': '',
   'formats': []}],
 'keywords': ['explains-original-feature-importance', 'h2o-sonar'],
 'parameters': [{'name': 'leakage_warning_threshold',
   'description': 'The threshold above which to report a potentially detectedfeature importance leak problem.',
   'comment': '',
   'type': 'float',
   'val': 0.95,
   'predefined': [],
   'tags': [],
   'min_': 0.0,
   'max_': 0.0,
   'category': ''}],
 'metrics_meta': []}

Interpretation

[15]:

# dataset
dataset_path = "../../data/predictive/pd_ice_creditcard_train.csv"
target_col = "LIMIT_BAL"

# model
mojo_path = "../../data/predictive/models/creditcard-regression.mojo"
mojo_model = daimojo.model(mojo_path)
model = ModelApi().create_model(
    model_src=mojo_model,
    target_col=target_col,
    used_features=list(mojo_model.feature_names),
)

# results
results_location = "./results"
os.makedirs(results_location, exist_ok=True)

[16]:

# check explainer compatibility before running interpretation
morris_explainer = explainer.MorrisSensitivityAnalysisExplainer()
morris_explainer.logger = logging.getLogger("morris_compatibility_check")

params = commons.CommonInterpretationParams(
    model=model,
    models=[],
    dataset=dataset_path,
    target_col=target_col,
)

is_compatible = morris_explainer.check_compatibility(params=params, model=model)

if not is_compatible:
    error_msg = "Morris Sensitivity Analysis explainer is NOT compatible with this model/dataset.\n\n"
    error_msg += "Possible reasons:\n"
    error_msg += "1. Missing dependencies: interpret==0.1.20 or gevent==1.5.0\n"
    error_msg += "   Install with: pip install interpret==0.1.20 gevent==1.5.0\n"
    error_msg += "2. Model type not supported (H2O-3 models are not compatible)\n"
    error_msg += "3. Model must be regression or binary classification\n\n"
    error_msg += "Cannot continue with interpretation. Please resolve compatibility issues first."
    raise RuntimeError(error_msg)
else:
    print("✓ Morris Sensitivity Analysis explainer is compatible with this model/dataset")

✓ Morris Sensitivity Analysis explainer is compatible with this model/dataset

[17]:

%%capture
interpretation = interpret.run_interpretation(
    dataset=dataset_path,
    model=model,
    target_col=target_col,
    results_location=results_location,
    explainers=[explainer.MorrisSensitivityAnalysisExplainer.explainer_id()],
    log_level=logging.INFO,
)

Explainer Result

[18]:

# retrieve the result
result = interpretation.get_explainer_result(
    explainer.MorrisSensitivityAnalysisExplainer.explainer_id()
)

Display Data

[19]:

result.data()

[19]:

	feature	importance
	▪▪▪▪	▪▪▪▪▪▪▪▪
0	PAY_AMT2	576582
1	BILL_AMT1	483290
2	PAY_AMT6	315424
3	PAY_AMT1	262665
4	PAY_AMT3	250634
5	PAY_AMT5	229284
6	BILL_AMT3	227349
7	PAY_AMT4	226623
8	BILL_AMT4	216030
9	BILL_AMT5	144456
10	BILL_AMT6	140663
11	AGE	85044.2
12	PAY_3	70326.1
13	PAY_5	50648.5
14	PAY_2	36126.8
15	EDUCATION	28226.3
16	PAY_1	16431.9
17	MARRIAGE	15073.3
18	PAY_4	14440.6
19	PAY_6	13579.2
20	SEX	5472.43
21	BILL_AMT2	4649.54

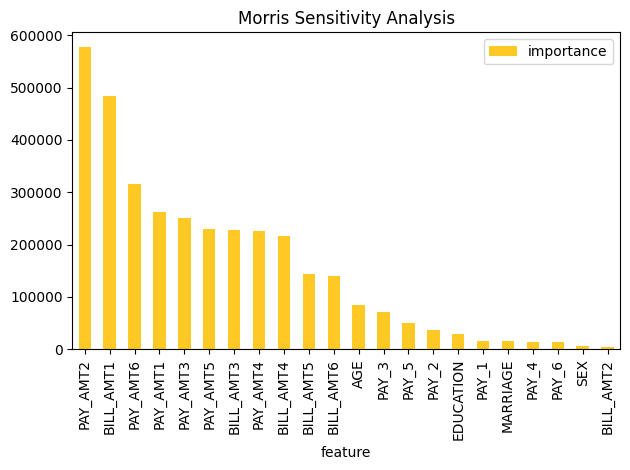

Plot Sensitivity Analysis Data

[20]:

result.plot()

../_images/notebooks_h2o-sonar-morris-sa-explainer_12_0.png

Save Explainer Log and Data

[21]:

# save the explainer log
log_file_path = "./morris-sa-demo.log"
result.log(path=log_file_path)

[22]:

!cat $log_file_path

[23]:

# save the explainer data
result.zip(file_path="./morris-sa-demo-archive.zip")

[24]:

!unzip -l morris-sa-demo-archive.zip

Archive:  morris-sa-demo-archive.zip
  Length      Date    Time    Name
---------  ---------- -----   ----
     2217  2026-01-29 16:21   explainer_h2o_sonar_explainers_morris_sa_explainer_MorrisSensitivityAnalysisExplainer_ae200700-113e-45dd-9c07-325067173db7/result_descriptor.json
        2  2026-01-29 16:21   explainer_h2o_sonar_explainers_morris_sa_explainer_MorrisSensitivityAnalysisExplainer_ae200700-113e-45dd-9c07-325067173db7/problems/problems_and_actions.json
      110  2026-01-29 16:21   explainer_h2o_sonar_explainers_morris_sa_explainer_MorrisSensitivityAnalysisExplainer_ae200700-113e-45dd-9c07-325067173db7/global_html_fragment/text_html.meta
      373  2026-01-29 16:21   explainer_h2o_sonar_explainers_morris_sa_explainer_MorrisSensitivityAnalysisExplainer_ae200700-113e-45dd-9c07-325067173db7/global_html_fragment/text_html/explanation.html
    27808  2026-01-29 16:21   explainer_h2o_sonar_explainers_morris_sa_explainer_MorrisSensitivityAnalysisExplainer_ae200700-113e-45dd-9c07-325067173db7/global_html_fragment/text_html/fi-class-0.png
        0  2026-01-29 16:21   explainer_h2o_sonar_explainers_morris_sa_explainer_MorrisSensitivityAnalysisExplainer_ae200700-113e-45dd-9c07-325067173db7/log/explainer_run_ae200700-113e-45dd-9c07-325067173db7.log
        2  2026-01-29 16:21   explainer_h2o_sonar_explainers_morris_sa_explainer_MorrisSensitivityAnalysisExplainer_ae200700-113e-45dd-9c07-325067173db7/insights/insights_and_actions.json
      185  2026-01-29 16:21   explainer_h2o_sonar_explainers_morris_sa_explainer_MorrisSensitivityAnalysisExplainer_ae200700-113e-45dd-9c07-325067173db7/global_feature_importance/application_vnd_h2oai_json_datatable_jay.meta
      143  2026-01-29 16:21   explainer_h2o_sonar_explainers_morris_sa_explainer_MorrisSensitivityAnalysisExplainer_ae200700-113e-45dd-9c07-325067173db7/global_feature_importance/application_json.meta
      669  2026-01-29 16:21   explainer_h2o_sonar_explainers_morris_sa_explainer_MorrisSensitivityAnalysisExplainer_ae200700-113e-45dd-9c07-325067173db7/global_feature_importance/application_vnd_h2oai_json_datatable_jay/explanation.json
      872  2026-01-29 16:21   explainer_h2o_sonar_explainers_morris_sa_explainer_MorrisSensitivityAnalysisExplainer_ae200700-113e-45dd-9c07-325067173db7/global_feature_importance/application_vnd_h2oai_json_datatable_jay/feature_importance_class_0.jay
      619  2026-01-29 16:21   explainer_h2o_sonar_explainers_morris_sa_explainer_MorrisSensitivityAnalysisExplainer_ae200700-113e-45dd-9c07-325067173db7/global_feature_importance/application_json/explanation.json
     1504  2026-01-29 16:21   explainer_h2o_sonar_explainers_morris_sa_explainer_MorrisSensitivityAnalysisExplainer_ae200700-113e-45dd-9c07-325067173db7/global_feature_importance/application_json/feature_importance_class_0.json
---------                     -------
    34504                     13 files

[ ]:
