Shapley Values for Transformed Features of MOJO Models Demo
This example demonstrates how to interpret a Driverless AI MOJO model using the H2O Sonar library and retrieve the data and plot with transformed features importances.
[1]:
import os
import logging
import datatable
import daimojo
import webbrowser
from h2o_sonar import interpret
from h2o_sonar.lib.api import commons
from h2o_sonar.lib.api import explainers
from h2o_sonar.explainers import transformed_fi_shapley_explainer as explainer
from h2o_sonar.lib.api.models import ModelApi
[2]:
# explainer description
interpret.describe_explainer(explainer.ShapleyMojoTransformedFeatureImportanceExplainer)
[2]:
{'id': 'h2o_sonar.explainers.transformed_fi_shapley_explainer.ShapleyMojoTransformedFeatureImportanceExplainer',
'name': 'ShapleyMojoTransformedFeatureImportanceExplainer',
'display_name': 'Shapley Values for Transformed Features of MOJO Models',
'tagline': 'ShapleyMojoTransformedFeatureImportanceExplainer.',
'description': 'Shapley explanations are a technique with credible theoretical support that presents consistent global and local variable contributions. Local numeric Shapley values are calculated by tracing single rows of data through a trained tree ensemble and aggregating the contribution of each input variable as the row of data moves through the trained ensemble. For regression tasks Shapley values sum to the prediction of the (Driverless AI) MOJO model. For classification problems, Shapley values sum to the prediction of the MOJO model before applying the link function. Global Shapley values are the average of the absolute local Shapley values over every row of a data set.',
'brief_description': 'ShapleyMojoTransformedFeatureImportanceExplainer.',
'model_types': ['iid', 'time_series'],
'can_explain': ['regression', 'binomial', 'multinomial'],
'explanation_scopes': ['global_scope', 'local_scope'],
'explanations': [{'explanation_type': 'global-feature-importance',
'name': 'GlobalFeatImpExplanation',
'category': '',
'scope': 'global',
'has_local': '',
'formats': []},
{'explanation_type': 'local-feature-importance',
'name': 'LocalFeatImpExplanation',
'category': '',
'scope': 'local',
'has_local': '',
'formats': []}],
'keywords': ['run-by-default',
'explains-transformed-feature-importance',
'is_fast',
'h2o-sonar'],
'parameters': [{'name': 'sample_size',
'description': 'Sample size.',
'comment': '',
'type': 'int',
'val': 100000,
'predefined': [],
'tags': [],
'min_': 0.0,
'max_': 0.0,
'category': ''},
{'name': 'calculate_predictions',
'description': 'Score dataset and include predictions in the explanation (local explanations speed-up cache).',
'comment': '',
'type': 'bool',
'val': False,
'predefined': [],
'tags': [],
'min_': 0.0,
'max_': 0.0,
'category': ''},
{'name': 'fast_approx_contrib',
'description': 'Speed up predictions with fast contributions predictions approximation.',
'comment': '',
'type': 'bool',
'val': True,
'predefined': [],
'tags': [],
'min_': 0.0,
'max_': 0.0,
'category': ''}],
'metrics_meta': []}
Interpretation
[3]:
# dataset
dataset_path = "../../data/predictive/creditcard.csv"
target_col = "default payment next month"
# model
mojo_path = "../../data/predictive/models/creditcard-binomial.mojo"
mojo_model = daimojo.model(mojo_path)
model = ModelApi().create_model(
model_src=mojo_model,
target_col=target_col,
used_features=list(mojo_model.feature_names),
)
# results
results_location = "./results"
os.makedirs(results_location, exist_ok=True)
[4]:
interpretation = interpret.run_interpretation(
dataset=dataset_path,
model=model,
target_col=target_col,
results_location=results_location,
explainers=[explainer.ShapleyMojoTransformedFeatureImportanceExplainer.explainer_id()],
log_level=logging.INFO,
)
/home/user/h/mli/git/h2o-sonar-FLOSS/.venv/lib/python3.11/site-packages/ragas/metrics/__init__.py:1: LangChainDeprecationWarning: As of langchain-core 0.3.0, LangChain uses pydantic v2 internally. The langchain_core.pydantic_v1 module was a compatibility shim for pydantic v1, and should no longer be used. Please update the code to import from Pydantic directly.
For example, replace imports like: `from langchain_core.pydantic_v1 import BaseModel`
with: `from pydantic import BaseModel`
or the v1 compatibility namespace if you are working in a code base that has not been fully upgraded to pydantic 2 yet. from pydantic.v1 import BaseModel
from ragas.metrics._answer_correctness import AnswerCorrectness, answer_correctness
/home/user/h/mli/git/h2o-sonar-FLOSS/.venv/lib/python3.11/site-packages/ragas/metrics/__init__.py:4: LangChainDeprecationWarning: As of langchain-core 0.3.0, LangChain uses pydantic v2 internally. The langchain.pydantic_v1 module was a compatibility shim for pydantic v1, and should no longer be used. Please update the code to import from Pydantic directly.
For example, replace imports like: `from langchain.pydantic_v1 import BaseModel`
with: `from pydantic import BaseModel`
or the v1 compatibility namespace if you are working in a code base that has not been fully upgraded to pydantic 2 yet. from pydantic.v1 import BaseModel
from ragas.metrics._context_entities_recall import (
Explainer Result
[5]:
# retrieve the result
result = interpretation.get_explainer_result(
explainer.ShapleyMojoTransformedFeatureImportanceExplainer.explainer_id()
)
[6]:
# open interpretation HTML report in web browser
webbrowser.open(interpretation.result.get_html_report_location())
[6]:
True
[7]:
# summary
result.summary()
[7]:
{'id': 'h2o_sonar.explainers.transformed_fi_shapley_explainer.ShapleyMojoTransformedFeatureImportanceExplainer',
'name': 'ShapleyMojoTransformedFeatureImportanceExplainer',
'display_name': 'Shapley Values for Transformed Features of MOJO Models',
'tagline': 'ShapleyMojoTransformedFeatureImportanceExplainer.',
'description': 'Shapley explanations are a technique with credible theoretical support that presents consistent global and local variable contributions. Local numeric Shapley values are calculated by tracing single rows of data through a trained tree ensemble and aggregating the contribution of each input variable as the row of data moves through the trained ensemble. For regression tasks Shapley values sum to the prediction of the (Driverless AI) MOJO model. For classification problems, Shapley values sum to the prediction of the MOJO model before applying the link function. Global Shapley values are the average of the absolute local Shapley values over every row of a data set.',
'brief_description': 'ShapleyMojoTransformedFeatureImportanceExplainer.',
'model_types': ['iid', 'time_series'],
'can_explain': ['regression', 'binomial', 'multinomial'],
'explanation_scopes': ['global_scope', 'local_scope'],
'explanations': [{'explanation_type': 'global-feature-importance',
'name': 'Shapley Values for Transformed Features of MOJO Models',
'category': 'DAI MODEL',
'scope': 'global',
'has_local': 'local-feature-importance',
'formats': ['application/vnd.h2oai.json+datatable.jay',
'application/vnd.h2oai.json+csv',
'application/json']},
{'explanation_type': 'local-feature-importance',
'name': 'Shapley Values for Transformed Features of MOJO Models',
'category': 'DAI MODEL',
'scope': 'local',
'has_local': None,
'formats': ['application/vnd.h2oai.json+datatable.jay']},
{'explanation_type': 'global-html-fragment',
'name': 'Shapley Values for Transformed Features of MOJO Models',
'category': 'DAI MODEL',
'scope': 'global',
'has_local': None,
'formats': ['text/html']}],
'keywords': ['run-by-default',
'explains-transformed-feature-importance',
'is_fast',
'h2o-sonar'],
'parameters': [{'name': 'sample_size',
'description': 'Sample size.',
'comment': '',
'type': 'int',
'val': 100000,
'predefined': [],
'tags': [],
'min_': 0.0,
'max_': 0.0,
'category': ''},
{'name': 'calculate_predictions',
'description': 'Score dataset and include predictions in the explanation (local explanations speed-up cache).',
'comment': '',
'type': 'bool',
'val': False,
'predefined': [],
'tags': [],
'min_': 0.0,
'max_': 0.0,
'category': ''},
{'name': 'fast_approx_contrib',
'description': 'Speed up predictions with fast contributions predictions approximation.',
'comment': '',
'type': 'bool',
'val': True,
'predefined': [],
'tags': [],
'min_': 0.0,
'max_': 0.0,
'category': ''}],
'metrics_meta': []}
[8]:
# parameters
result.params()
[8]:
{'sample_size': 100000,
'calculate_predictions': False,
'fast_approx_contrib': True}
Display Data
[9]:
result.data()
[9]:
| feature | importance | |
|---|---|---|
| ▪▪▪▪ | ▪▪▪▪▪▪▪▪ | |
| 0 | 10_PAY_0 | 0.484314 |
| 1 | 11_PAY_2 | 0.177288 |
| 2 | 8_LIMIT_BAL | 0.14293 |
| 3 | 19_PAY_AMT4 | 0.125988 |
| 4 | 17_PAY_AMT2 | 0.109839 |
| 5 | 1_BILL_AMT1 | 0.0856685 |
| 6 | 12_PAY_3 | 0.0460469 |
| 7 | 18_PAY_AMT3 | 0.0405643 |
| 8 | 15_PAY_6 | 0.035129 |
| 9 | 2_BILL_AMT2 | 0.0307533 |
| 10 | 13_PAY_4 | 0.0292232 |
| 11 | 6_BILL_AMT6 | 0.0230935 |
| 12 | 14_PAY_5 | 0.0203799 |
| 13 | 16_PAY_AMT1 | 0.014774 |
| 14 | 7_EDUCATION | 0.00983341 |
| 15 | 0_AGE | 0.00831316 |
| 16 | 9_MARRIAGE | 0.00725285 |
| 17 | 21_PAY_AMT6 | 0.00588243 |
| 18 | 20_PAY_AMT5 | 0.00541516 |
| 19 | 5_BILL_AMT5 | 0.00464642 |
| 20 | 4_BILL_AMT4 | 0.00144066 |
| 21 | 3_BILL_AMT3 | 0.000818275 |

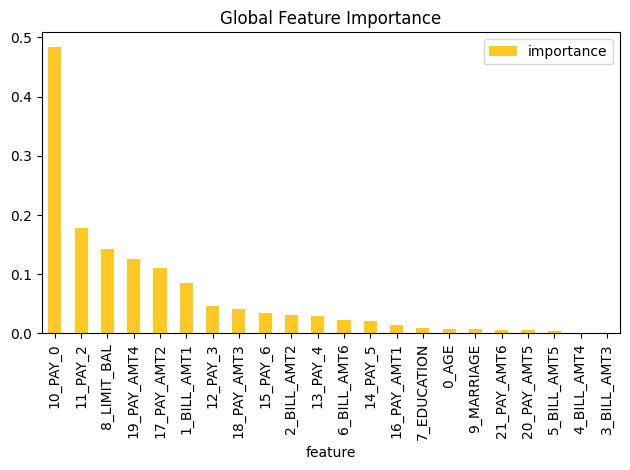

Plot Feature Importance Data
[10]:
result.plot()
Save Explainer Log and Data
[11]:
# save the explainer log
log_file_path = "./feature-importance-demo.log"
result.log(path=log_file_path)
[12]:
!cat $log_file_path
[13]:
# save the explainer data
result.zip(file_path="./feature-importance-demo-archive.zip")
[14]:
!unzip -l feature-importance-demo-archive.zip
Archive: feature-importance-demo-archive.zip
Length Date Time Name
--------- ---------- ----- ----
3788 2026-01-29 15:59 explainer_h2o_sonar_explainers_transformed_fi_shapley_explainer_ShapleyMojoTransformedFeatureImportanceExplainer_461b7b1c-e2b5-48ce-b144-c168e19714d8/result_descriptor.json
2 2026-01-29 15:59 explainer_h2o_sonar_explainers_transformed_fi_shapley_explainer_ShapleyMojoTransformedFeatureImportanceExplainer_461b7b1c-e2b5-48ce-b144-c168e19714d8/problems/problems_and_actions.json
110 2026-01-29 15:59 explainer_h2o_sonar_explainers_transformed_fi_shapley_explainer_ShapleyMojoTransformedFeatureImportanceExplainer_461b7b1c-e2b5-48ce-b144-c168e19714d8/global_html_fragment/text_html.meta
4636 2026-01-29 15:59 explainer_h2o_sonar_explainers_transformed_fi_shapley_explainer_ShapleyMojoTransformedFeatureImportanceExplainer_461b7b1c-e2b5-48ce-b144-c168e19714d8/global_html_fragment/text_html/explanation.html
32993 2026-01-29 15:59 explainer_h2o_sonar_explainers_transformed_fi_shapley_explainer_ShapleyMojoTransformedFeatureImportanceExplainer_461b7b1c-e2b5-48ce-b144-c168e19714d8/global_html_fragment/text_html/fi-class-0.png
0 2026-01-29 15:59 explainer_h2o_sonar_explainers_transformed_fi_shapley_explainer_ShapleyMojoTransformedFeatureImportanceExplainer_461b7b1c-e2b5-48ce-b144-c168e19714d8/log/explainer_run_461b7b1c-e2b5-48ce-b144-c168e19714d8.log
1757965 2026-01-29 15:59 explainer_h2o_sonar_explainers_transformed_fi_shapley_explainer_ShapleyMojoTransformedFeatureImportanceExplainer_461b7b1c-e2b5-48ce-b144-c168e19714d8/work/shapley_formatted.zip
1762128 2026-01-29 15:59 explainer_h2o_sonar_explainers_transformed_fi_shapley_explainer_ShapleyMojoTransformedFeatureImportanceExplainer_461b7b1c-e2b5-48ce-b144-c168e19714d8/work/shapley.bin
4696086 2026-01-29 15:59 explainer_h2o_sonar_explainers_transformed_fi_shapley_explainer_ShapleyMojoTransformedFeatureImportanceExplainer_461b7b1c-e2b5-48ce-b144-c168e19714d8/work/shapley.csv
2 2026-01-29 15:59 explainer_h2o_sonar_explainers_transformed_fi_shapley_explainer_ShapleyMojoTransformedFeatureImportanceExplainer_461b7b1c-e2b5-48ce-b144-c168e19714d8/insights/insights_and_actions.json
185 2026-01-29 15:59 explainer_h2o_sonar_explainers_transformed_fi_shapley_explainer_ShapleyMojoTransformedFeatureImportanceExplainer_461b7b1c-e2b5-48ce-b144-c168e19714d8/global_feature_importance/application_vnd_h2oai_json_datatable_jay.meta
143 2026-01-29 15:59 explainer_h2o_sonar_explainers_transformed_fi_shapley_explainer_ShapleyMojoTransformedFeatureImportanceExplainer_461b7b1c-e2b5-48ce-b144-c168e19714d8/global_feature_importance/application_json.meta
163 2026-01-29 15:59 explainer_h2o_sonar_explainers_transformed_fi_shapley_explainer_ShapleyMojoTransformedFeatureImportanceExplainer_461b7b1c-e2b5-48ce-b144-c168e19714d8/global_feature_importance/application_vnd_h2oai_json_csv.meta
1531 2026-01-29 15:59 explainer_h2o_sonar_explainers_transformed_fi_shapley_explainer_ShapleyMojoTransformedFeatureImportanceExplainer_461b7b1c-e2b5-48ce-b144-c168e19714d8/global_feature_importance/application_vnd_h2oai_json_datatable_jay/explanation.json
936 2026-01-29 15:59 explainer_h2o_sonar_explainers_transformed_fi_shapley_explainer_ShapleyMojoTransformedFeatureImportanceExplainer_461b7b1c-e2b5-48ce-b144-c168e19714d8/global_feature_importance/application_vnd_h2oai_json_datatable_jay/feature_importance_class_0.jay
824 2026-01-29 15:59 explainer_h2o_sonar_explainers_transformed_fi_shapley_explainer_ShapleyMojoTransformedFeatureImportanceExplainer_461b7b1c-e2b5-48ce-b144-c168e19714d8/global_feature_importance/application_json/explanation.json
1642 2026-01-29 15:59 explainer_h2o_sonar_explainers_transformed_fi_shapley_explainer_ShapleyMojoTransformedFeatureImportanceExplainer_461b7b1c-e2b5-48ce-b144-c168e19714d8/global_feature_importance/application_json/feature_importance_class_0.json
823 2026-01-29 15:59 explainer_h2o_sonar_explainers_transformed_fi_shapley_explainer_ShapleyMojoTransformedFeatureImportanceExplainer_461b7b1c-e2b5-48ce-b144-c168e19714d8/global_feature_importance/application_vnd_h2oai_json_csv/explanation.json
775 2026-01-29 15:59 explainer_h2o_sonar_explainers_transformed_fi_shapley_explainer_ShapleyMojoTransformedFeatureImportanceExplainer_461b7b1c-e2b5-48ce-b144-c168e19714d8/global_feature_importance/application_vnd_h2oai_json_csv/feature_importance_class_0.csv
201 2026-01-29 15:59 explainer_h2o_sonar_explainers_transformed_fi_shapley_explainer_ShapleyMojoTransformedFeatureImportanceExplainer_461b7b1c-e2b5-48ce-b144-c168e19714d8/local_feature_importance/application_vnd_h2oai_json_datatable_jay.meta
887 2026-01-29 15:59 explainer_h2o_sonar_explainers_transformed_fi_shapley_explainer_ShapleyMojoTransformedFeatureImportanceExplainer_461b7b1c-e2b5-48ce-b144-c168e19714d8/local_feature_importance/application_vnd_h2oai_json_datatable_jay/explanation.json
1762128 2026-01-29 15:59 explainer_h2o_sonar_explainers_transformed_fi_shapley_explainer_ShapleyMojoTransformedFeatureImportanceExplainer_461b7b1c-e2b5-48ce-b144-c168e19714d8/local_feature_importance/application_vnd_h2oai_json_datatable_jay/feature_importance_class_0.jay
--------- -------
10027948 22 files
[ ]:
