Getting Started with BYOE Recipes

H2O Eval Studio enables you to build an extensible platform of custom explainers. H2O Eval Studio users can implement their own methods to get custom insights or determine model behavior, use their domain expertise or customize existing explainers.

H2O Eval Studio uses the concept of recipes which allows for adding and developing custom explainers - you can bring your own explainer (BYOE).

• Introduction to Bring Your Own Example recipes

  • How do recipes work?

  • What is the role of recipes?

  • Where can you find open-source recipes?

• Explainer

  • Morris sensitivity analysis

  • Create

    • Constructor

    • setup()

    • explain()

  • Register

  • Run

  • Debug

  • Result

    • Plot

    • Data

    • Archive

• Conclusion

• Morris sensitivity analysis explainer source code

• Running BYOE recipe source code

• Resources

Introduction to Bring Your Own Explainer recipes

H2O Eval Studio brings interpretability to machine learning models to explain modeling results in a human-readable format. H2O Eval Studio provides different techniques and methods for interpreting and explaining model results.

The set of techniques and methods can be extended with custom explainers as H2O Eval Studio supports BYOE recipes - the ability to Bring Your Own Explainer. BYOE recipe is Python code snippet. With BYOE recipe, you can use your own explainers in combination with or instead of all built-in explainers. This allows you to further extend H2O Eval Studio explainers in addition to out-of-the-box methods.

BYOE recipes can be registered as explainers in H2O Eval Studio runtime - just like a plugin.

How do recipes work?

When H2O Eval Studio user starts interpretation, model compatible explainers (from the available set of out-of-the-box and custom explainers) are selected and executed. Explainers create model explanations that are might be visualized using H2O Eval Studio and/or can be found on the filesystem:

1. explainer execution

2. explanation creation

3. optional explanation normalization

What is the role of recipes?

BYOE allows H2O Eval Studio users to bring their own recipes or leverage the existing, open-source recipes to explain models. In this way, the expertise of those creating and using the recipes is leveraged to focus on domain-specific functions to build customizations.

Where can you find open-source recipe examples and templates?

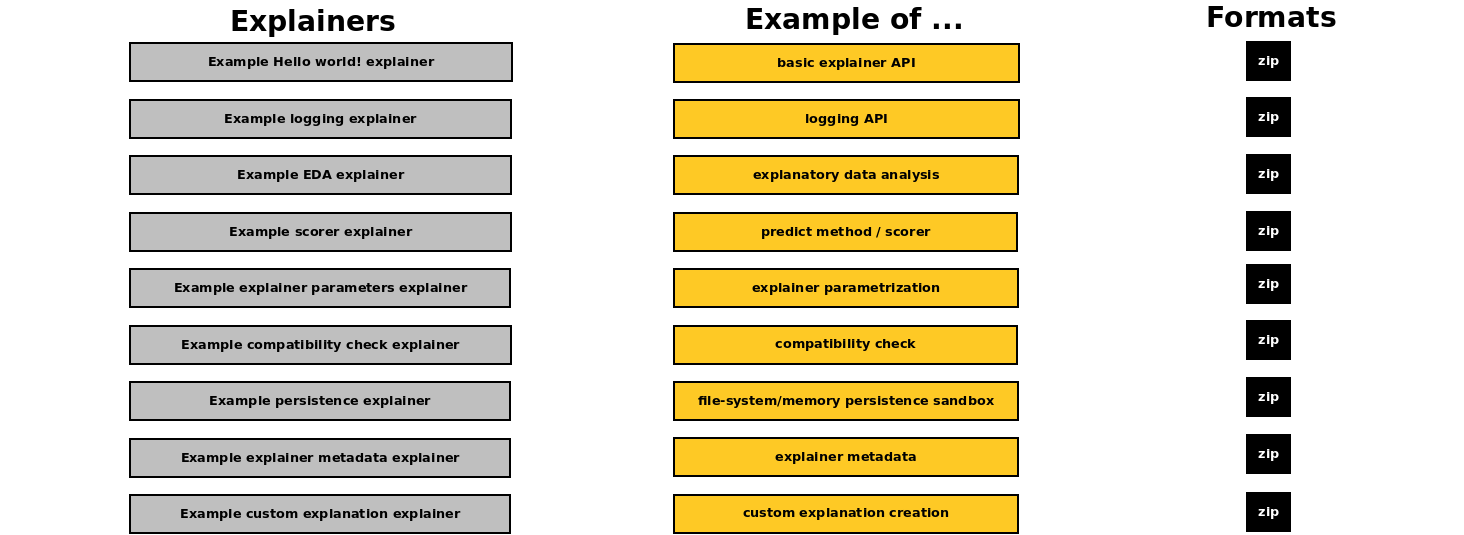

Open source recipe examples - which are used also in the documentation to demonstrate H2O Eval Studio explainer API - can be found in:

• examples/explainers/byoe/examples H2O Eval Studio distribution directory

• H2O Eval Studio GitHub repository (private)

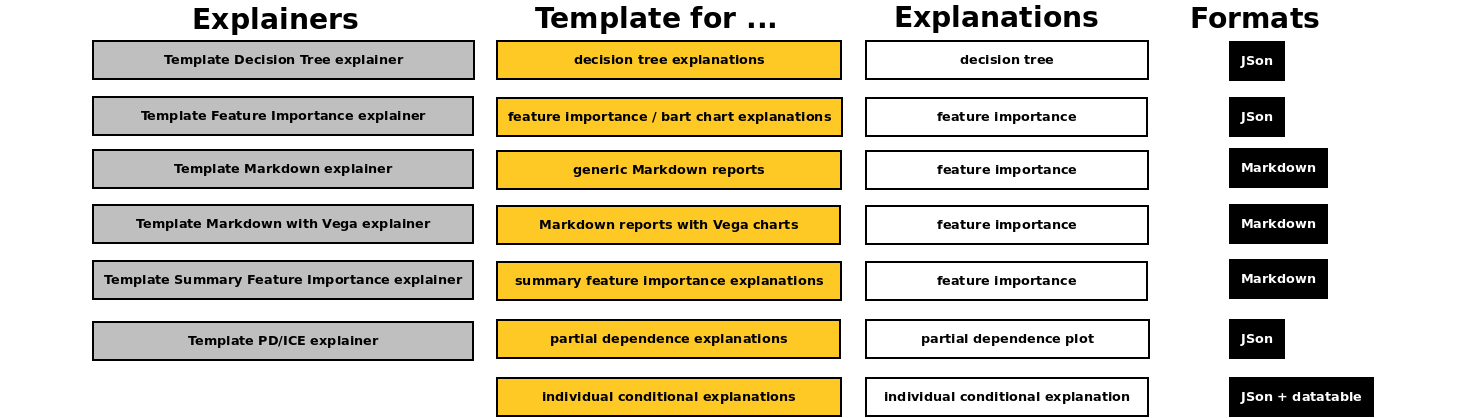

Open source recipe templates - which can be used to create quickly new explainers just by choosing desired explainer type / explanation (like feature importance, a decision tree or partial dependence) and replacing mock data with a calculation - can be found in:

• examples/explainers/byoe/templates H2O Eval Studio distribution directory

• H2O Eval Studio GitHub repository (private)

Explainer

This section describes how to create a new explainer from your method or 3rd party library using BYOE recipes.

Morris sensitivity analysis

Explainer which will be created leverages Morris sensitivity analysis technique from 3rd-party Microsoft open source interpretation library:

• InterpretML

• interpretml/interpret GitHub repository

Source code of the explainer which will be created:

• Morris sensitivity analysis explainer example

Similarly, you can create a new explainer using your favorite responsible AI library or your own method.

Create

Custom BYOE recipe explainer is Python class whose parent class is Explainer.

class ExampleMorrisSensitivityExplainer(Explainer):
    ...

Explainer declares its display name (shown in reports and API), description, and supported experiments (regression, binomial classification, or multinomial classification), explanations scope (global, local), explanations types (like feature importance), required Python library dependencies and other metadata as class field.

class ExampleMorrisSensitivityExplainer(Explainer):

    _display_name = "Example Morris Sensitivity Analysis"
    _regression = True
    _binary = True
    _global_explanation = True
    _explanation_types = [GlobalFeatImpExplanation]
    _modules_needed_by_name = ["gevent==1.5.0", "interpret==0.1.20"]

    ...

Morris sensitivity analysis explainer will support global feature importance explanations for regression and binomial experiments and it depends on Microsoft interpret library (pip package name).

When implementing an explainer, the following methods are invoked through the explainer life-cycle:

• __init__() … MUST be implemented

  • Explainer class constructor which takes no parameters and calls parent constructor(s).

• check_compatibility() -> bool … OPTIONAL

  • Compatibility check which can be used to indicate that the explainer is or is not compatible with the given model, dataset, parameters, etc. apart to automatic explainer metadata-based compatibility check performed by H2O Eval Studio runtime.

• setup() … MUST be implemented

  • Explainer initialization which gets various arguments allowing to get enough information for the compatibility check and actual explanations calculation.

• fit() … OPTIONAL

  • Method which can pre-compute explainer artifacts like (surrogate) models to be subsequently used by the explain*() methods. This method is invoked only once in the lifecycle of the explainer.

• explain() -> List … MUST be implemented

  • The most important method which creates and persists global and local explanations on running interpretation.

• explain_local() -> list … OPTIONAL

  • Method which creates local explanations. Local explanations is used after the interpretation finishes. Local explanations can be either calculated on demand or use cached artifacts previously prepared by fit() and explain() methods.

• explain_global() -> list … OPTIONAL

  • Method which creates or updates global explanations. This method is after the interpretation finishes. Global explanations can be either calculated on demand or use cached artifacts previously prepared by fit() and explain() methods.

• destroy() … OPTIONAL

  • Post explainer explain method to clean up resources, files, and artifacts which are no longer needed.

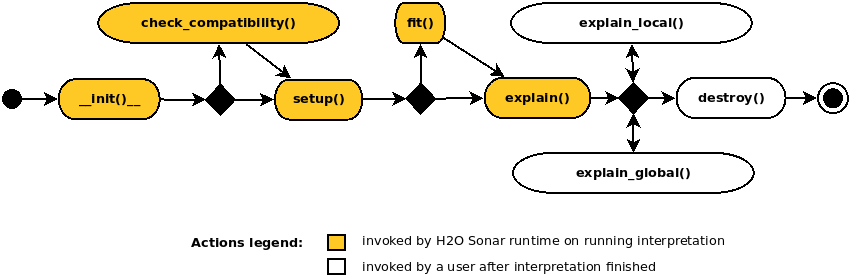

These methods are invoked by recipe runtime through the explainer life-cycle.

Constructor

Explainer must implement default constructor which cannot have required parameters:

def __init__(self):
    Explainer.__init__(self)

setup()

The explainer must implement setup() method with the following signature:

def setup(self, model, persistence, key=None, params=None, **explainer_params):
    """Set explainer fields needed to execute `fit()` and `explain()` methods.

    Parameters
    ----------
    model : Optional[ExplainableModel]
      Model to be explained.
    persistence : CustomExplainerPersistence
      Persistence API allows safe saving and loading of explanations to
      desired storage (file system, memory, database).
    key : str
      Optional (given) explanation key (generated otherwise).
    params : CommonInterpretationParams
      Common explainer parameters specified on explainer run.
    explainer_params :
      Other explainer parameters, options, and configuration.

    """

    CustomExplainer.setup(self, model, persistence, key, params, **explainer_params)

The implementation must invoke the parent class setup() method which sets the following class instance fields:

• self.model

  • Instance of ExplainableModel class which represents the model to be explained. The explainable model provides metadata (like features used by the model) as well as predict method (scorer) of the model.

• self.dataset_meta

  • Instance of ExplainableDataset class which represents the dataset that is used to explain the model. It provides both dataset metadata as well as handle to the datatable data frame.

• self.persistence

  • Instance of ExplainerPersistence class which provides explainer API to conveniently persist data created by the explainer e.g. to its working directory.

• self.params

  • Common interpretation parameters specified on explainer run like model’s target column or columns to drop.

• self.logger

  • Logger which can be used to print info, debug, warning, error or debug messages to explainer’s log - to be used e.g. for debugging.

• self.config

  • Global H2O Eval Studio configuration.

Instance attributes listed above can be subsequently used in all methods invoked after the setup().

explain()

Finally the explainer must implement explain() method which is supposed to create and persist both global and local explanations:

def explain(self, X, y=None, explanations_types: list = None, **kwargs) -> List:
 """Invoke this method to calculate and persist global, local, or both type
 of explanation(s) for given model and data(set).

 X: datatable.Frame
   Dataset frame.
 y: Optional[Union[datatable.Frame, Any]]
   Labels.
 explanations_types: List[Type[Explanation]]
   Optional explanation types to be built.

 Returns
 -------
 List[Explanation]:
   Explanations descriptors.

 """
    ...

explain() method typically has the following steps:

1. dataset preparation

2. predict method creation

3. explanation(s) calculation

4. optional explanation normalization

Dataset preparation is performed using H2O Eval Studio utility method which is able to preprocess the dataset as 3rd party Morris sensitivity analysis implementation works on datasets and models with numerical features only i.e.it cannot be run on a dataset with e.g. string categorical features. The utility method automatically detects non-numeric features, performs label encoding (returns the encoder for subsequent use - decoding in predict method) and drops all N/A dataset rows:

def explain(...) -> List:
    ...
   (x, _, self.model.label_encoder, _) = explainable_x.prepare(
       le_cat_variables=True,
       used_features=self.model.meta.used_features,
       cleaned_frame_type=pandas.DataFrame,
   )

If the explainer uses a 3rd party library, it typically must create predict method which is suited for the 3rd party library. In this case, Morris sensitivity analysis expects predict method input and output data to be numpy arrays. Therefore the default predict method of the explainable model (self.model.predict()) must be customized:

def predict_function(dataset: numpy.ndarray):
    preds = self.model.predict(
        datasets.ExplainableDataset.frame_2_datatable(
            dataset,
            columns=self.model.meta.used_features,
        )
    )
    return datasets.ExplainableDataset.frame_2_numpy(preds, flatten=True)

Explanation calculation is straightforward - Morris sensitivity analysis is imported and invoked:

from interpret.blackbox import MorrisSensitivity

sensitivity: MorrisSensitivity = MorrisSensitivity(
    predict_fn=predict_function, data=x, feature_names=list(x.columns)
)
morris_explanation = sensitivity.explain_global(name=self.display_name)

morris_explanation is a third-party/proprietary explanation. Explainer can:

• persist explanation and make it available for download

• optionally normalize the explanation to enable the use of H2O Eval Studio library functions for data visualization, processing and conversion - get_result() method can return an instance of Result class which provides help, data(), plot(), log(), summary(), params() and zip() methods to get machine processable explanation, visualized explanation, explainer log, summary of the explanation, explainer parameters and archive with all files created by the explainer:

def get_result(
    self,
) -> results.FeatureImportanceResult:
    return results.FeatureImportanceResult(
        persistence=self.persistence,
        explainer_id=ExampleMorrisSensitivityAnalysisExplainer.explainer_id(),
        chart_title=ExampleMorrisSensitivityAnalysisExplainer._display_name,
        h2o_sonar_config=self.config,
        logger=self.logger,
    )

Finally explain() method must return explanations declared by the custom explainer:

explanations = [self._normalize_to_gom(morris_explanation)]
return explanations

Check Morris sensitivity analysis explainer source code listing.

Register

BYOE recipe explainer must be registered in H2O Eval Studio runtime before it can be run in the interpretation.

Prerequisites:

• the explainer must be installed and/or available on the PYTHONPATH.

Register using Python API

When using Python API the explainer can be registered as follows:

from h2o_sonar import interpret

from example_morris_sa_explainer import ExampleMorrisSensitivityExplainer

explainer_id: str = interpret.register_explainer(
    explainer_class=ExampleMorrisSensitivityExplainer,
)

Registration method returns explainer_id which can be subsequently used in interpret.run_interpretation() to run and parameterize the custom explainer.

Register using Command Line Interface

When using CLI the explainer can be registered as follows:

1. Make sure that the explainer is (installed) on PYTHONPATH.

2. Create H2O Eval Studio configuration file with BYOE recipe explainer locator (explainer packages and module name, :: separator, explainer class ):

{
    "custom_explainers": [
        "example_morris_sa_explainer::ExampleMorrisSensitivityAnalysisExplainer"
    ]
}

3. Store above configuration to h2o-sonar-config.json file (see also Library Configuration).

4. Use the configuration file when you will run configuration, list explainers or use any other h2o-sonar command.

H2O Eval Studio will load the configuration and automatically register the explainer.

Run

To run a custom BYOE recipe explainer, run the interpretation and specify explainer ID assigned to it on registration.

Run using Python API

When using Python API the explainer can be run as follows:

# register the explainer
explainer_id: str = interpret.register_explainer(...)

# run the explainer
interpretation = interpret.run_interpretation(
    dataset=dataset_path,
    model=model_to_be_explained,
    target_col=target_col,
    explainers=[explainer_id],
)

Please note that only basic set of explainers is run by default - in order to run new BYOE recipe explainer you can use one of the following options:

• use explainers=[explainer_id] to run only new explainer - the explainer is identified by ID created during its registration

• use explainer_keywords=[interpret.KEYWORD_FILTER_ALL] parameter to run all compatible explainers

Run using Command Line Interface

When using CLI the explainer can be run as follows:

$ h2o-sonar run interpretation \
    --dataset=dataset.csv \
    --model=model-to-be-explained.pkl \
    --target-col=TARGET \
    --config-path=h2o-sonar-config.json
    --all-explainers

This shell command will use h2o-sonar-config.json configuration file (created in the explainer registration step), register the custom explainer and run all explainers compatible with the model. Please note that only basic set of explainers is run by default - in order to run new BYOE recipe explainer you can use one of the following options:

• use --all-explainers parameter to run all compatible explainers (which is used in the example above)

• use --explainer-ids=example_morris_sa_explainer.ExampleMorrisSensitivityAnalysisExplainer to run only new explainer - the explainer is identified by ID created during its registration - simply replace :: with . in the locator to get ID

Debug

To debug an explainer, you can use self.logger instance attribute and log debugging messages, exceptions, and values:

def explain(...):
    ...
    self.logger.debug("This is a debug message.")

These log messages are stored in explainer’s log which can be found in:

• $RESULTS_DIRECTORY/h2o-sonar/mli_experiment_<UUID>/explainer_<explainer ID>_<UUID>/log

Where $RESULT_DIRECTORY is the current directory, or result_dir is specified in the interpretation parameter. You may also check H2O Eval Studio log with runtime and interpretations’ log messages, which can be found in:

• $RESULTS_DIRECTORY/h2o-sonar/h2o-sonar.log

Use both logs to determine the root cause of the failure, fix it and simply re-register and re-run the explainer in the same way.

Result

The explainer creates and persists explanations:

.
├── h2o-sonar
│   └── mli_experiment_<UUID>
│       ├── explainers_parameters.json
│       ├── explainer_tests_explainers_doc_example_morris_sa_explainer_ExampleMorrisSensitivityAnalysisExplainer_<UUID>
│       │   ├── global_feature_importance
│       │   │   ├── application_json
│       │   │   │   ├── explanation.json
│       │   │   │   └── feature_importance_class_0.json
│       │   │   ├── application_json.meta
│       │   │   ├── application_vnd_h2oai_json_datatable_jay
│       │   │   │   ├── explanation.json
│       │   │   │   └── feature_importance_class_0.jay
│       │   │   └── application_vnd_h2oai_json_datatable_jay.meta
│       │   ├── log
│       │   │   └── explainer_run_<UUID>.log
│       │   ├── result_descriptor.json
│       │   └── work
│       ├── interpretation.html
│       └── interpretation.json
├── h2o-sonar.html
└── h2o-sonar.log

After the interpretation finishes, you can check out explanations on the filesystem (see Interpretation Directory Structure). The best location where to start is the interpretation HTML report which can be found in h2o-sonar/mli_experiment_<UUID>/interpretation.html:

Alternatively, you can use Python API to get normalized data, visualize explanations, or archive all artifacts created by the explainer (see h2o_sonar.lib.api.commons module).

Data

When using Python API you can get normalized explanation data as follows:

# run the explainer
interpretation = interpret.run_interpretation(...)

# explainer result
result = interpretation.get_explainer_result(explainer_id=explainer_id)

# normalized explanations data
explanation_data = result.data()

Different types of explanations may accept different parameters allowing you to choose e.g. feature or class (which is not applicable in this case).

The above method returns the frame which looks like this:

   | feature    importance
   | str32         float64
-- + ---------  ----------
 0 | ID             0.33
 1 | LIMIT_BAL      0.3285
 2 | BILL_AMT6      0.3225
 3 | AGE            0.207
 4 | EDUCATION      0.18
 5 | PAY_0          0.1485
 6 | BILL_AMT2      0.132
 7 | PAY_5          0.117
 8 | PAY_AMT2       0.111
 9 | PAY_2          0.1005
10 | PAY_3          0.099
11 | PAY_AMT1       0.084
12 | BILL_AMT3      0.081
13 | PAY_4          0.0765
14 | PAY_AMT5       0.072
15 | MARRIAGE       0.0705
16 | BILL_AMT1      0.0615
17 | PAY_AMT3       0.0525
18 | PAY_AMT6       0.042
19 | BILL_AMT4      0.0375
20 | PAY_6          0.036
21 | BILL_AMT5      0.0195
22 | PAY_AMT4       0.0195
23 | SEX            0.0135
[24 rows x 2 columns]

Plot

When using Python API you can get explanation visualization as follows:

# run the explainer
interpretation = interpret.run_interpretation(...)

# explainer result
result = interpretation.get_explainer_result(explainer_id=explainer_id)

# visualized explanation
result.plot(file_path="morris_sa_plot.png")

Different types of explanations may accept different parameters allowing you to choose e.g. feature or class (which is not application in this case). Parameter file_path is optional, in case it’s not specified, the explanation is rendered so that it can be shown e.g. in Jupyter Notebook.

Archive

When using Python API you can get archive with all artifacts created by the explainer as follows:

# run the explainer
interpretation = interpret.run_interpretation(...)

# explainer result
result = interpretation.get_explainer_result(explainer_id=explainer_id)

# visualized explanation
result.zip(file_path="morris_sa_archive.zip")

The explainer creates the following directory structure on the filesystem:

explainer_tests_explainers_doc_example_morris_sa_explainer_ExampleMorrisSensitivityAnalysisExplainer_a89627ee-ab4e-4725-a14b-381f319b2252
├── global_feature_importance
│   ├── application_json
│   │   ├── explanation.json
│   │   └── feature_importance_class_0.json
│   ├── application_json.meta
│   ├── application_vnd_h2oai_json_datatable_jay
│   │   ├── explanation.json
│   │   └── feature_importance_class_0.jay
│   └── application_vnd_h2oai_json_datatable_jay.meta
├── log
│   └── explainer_run_a89627ee-ab4e-4725-a14b-381f319b2252.log
├── result_descriptor.json
└── work

Conclusion

In this tutorial you learned how to implement, register, run, debug and get explanations of BYOE recipe explainers.

Morris sensitivity analysis explainer source code

from typing import List
from typing import Optional

import datatable
import numpy
import pandas
from h2o_sonar.explainers.commons import explainers_commons
from h2o_sonar.lib.api import commons
from h2o_sonar.lib.api import datasets
from h2o_sonar.lib.api import explainers
from h2o_sonar.lib.api import explanations as e10s
from h2o_sonar.lib.api import formats as f5s
from h2o_sonar.lib.api import models
from h2o_sonar.lib.api import persistences
from h2o_sonar.lib.api import results


class ExampleMorrisSensitivityAnalysisExplainer(explainers.Explainer):
    """InterpretML: Morris sensitivity analysis explainer."""

    # explainer display name (used e.g. in explainer listing)
    _display_name = "Example Morris Sensitivity Analysis"
    # explainer description (used e.g. in explanations help)
    _description = (
        "Morris sensitivity analysis (SA) explainer provides Morris sensitivity "
        "analysis based feature importance which is a measure of the contribution of "
        "an input variable to the overall predictions of the model. In applied "
        "statistics, the Morris method for global sensitivity analysis is a so-called "
        "one-step-at-a-time method (OAT), meaning that in each run only one input "
        "parameter is given a new value. This explainer is based based on InterpretML "
        "library - see http://interpret.ml"
    )
    # declaration of supported experiments: regression / binary / multiclass
    _regression = True
    _binary = True
    # declaration of provided explanations: global, local or both
    _global_explanation = True
    # declaration of explanation types this explainer creates e.g. feature importance
    _explanation_types = [e10s.GlobalFeatImpExplanation]
    # required Python package dependencies (can be installed using pip)
    _modules_needed_by_name = ["gevent==1.5.0", "interpret==0.1.20"]

    # explainer constructor must not have any required parameters
    def __init__(self):
        explainers.Explainer.__init__(self)

    # setup() method is used to initialize the explainer based on provided parameters
    def setup(
        self,
        model: Optional[models.ExplainableModel],
        persistence: persistences.ExplainerPersistence,
        key: Optional[str] = None,
        params: Optional[commons.CommonInterpretationParams] = None,
        **explainer_params,
    ):
        explainers.Explainer.setup(
            self,
            model=model,
            persistence=persistence,
            key=key,
            params=params,
            **explainer_params,
        )

        self.persistence.save_explainers_params({self.explainer_id(): {}})

    # explain() method creates the explanations
    def explain(
        self,
        X,
        explainable_x: Optional[datasets.ExplainableDataset] = None,
        y=None,
        **kwargs,
    ) -> List:
        # import 3rd party Morris Sensitivity Analysis library
        from interpret import blackbox

        # DATASET: encoding of categorical features for 3rd party library which
        # support numeric features only, filtering of rows w/ missing values, and more
        (x, _, self.model.label_encoder, _) = explainable_x.prepare(
            le_cat_variables=True,
            used_features=self.model.meta.used_features,
            cleaned_frame_type=pandas.DataFrame,
        )

        # PREDICT FUNCTION: library compliant predict function which works on numpy
        def predict_function(dataset: numpy.ndarray):
            # score
            preds = self.model.predict(
                datasets.ExplainableDataset.frame_2_datatable(
                    dataset,
                    columns=self.model.meta.used_features,
                )
            )

            # scoring output conversion to the frame type required by the library
            return datasets.ExplainableDataset.frame_2_numpy(preds, flatten=True)

        # CALCULATION of the Morris SA explanation
        sensitivity: blackbox.MorrisSensitivity = blackbox.MorrisSensitivity(
            predict_fn=predict_function, data=x, feature_names=list(x.columns)
        )
        morris_explanation = sensitivity.explain_global(name=self.display_name)

        # NORMALIZATION of proprietary Morris SA library data to standard format
        explanations = [self._normalize_to_gom(morris_explanation)]

        # explainer MUST return explanation(s) declared in _explanation_types
        return explanations

    #
    # optional NORMALIZATION to Grammar of MLI (GoM)
    #

    # Normalization of the data to the Grammar of MLI defined format. Normalized data
    # can be visualized using H2O Eval Studio components.
    #
    # This method creates explanation (data) and its representations (JSon, datatable)
    def _normalize_to_gom(self, morris_explanation) -> e10s.GlobalFeatImpExplanation:
        # EXPLANATION
        explanation = e10s.GlobalFeatImpExplanation(
            explainer=self,
            display_name=self.display_name,
            display_category=e10s.GlobalFeatImpExplanation.DISPLAY_CAT_CUSTOM,
        )

        # FORMAT: explanation representation as JSon+datatable - JSon index file which
        # references datatable frame with sensitivity values for each class
        jdf = f5s.GlobalFeatImpJSonDatatableFormat
        # data normalization: 3rd party frame to Grammar of MLI defined frame
        # conversion - see GlobalFeatImpJSonDatatableFormat docstring for format
        # documentation and source for helpers to create the representation easily
        explanation_frame = datatable.Frame(
            {
                jdf.COL_NAME: morris_explanation.data()["names"],
                jdf.COL_IMPORTANCE: list(morris_explanation.data()["scores"]),
                jdf.COL_GLOBAL_SCOPE: [True] * len(morris_explanation.data()["scores"]),
            }
        ).sort(-datatable.f[jdf.COL_IMPORTANCE])
        # index file (of per-class data files) (JSon)
        (
            idx_dict,
            idx_str,
        ) = f5s.GlobalFeatImpJSonDatatableFormat.serialize_index_file(
            classes=["global"],
            doc=ExampleMorrisSensitivityAnalysisExplainer._description,
        )
        json_dt_format = f5s.GlobalFeatImpJSonDatatableFormat(explanation, idx_str)
        json_dt_format.update_index_file(
            idx_dict, total_rows=explanation_frame.shape[0]
        )
        # data file (datatable)
        json_dt_format.add_data_frame(
            format_data=explanation_frame,
            file_name=idx_dict[jdf.KEY_FILES]["global"],
        )
        # JSon+datatable format can be added as explanation's representation
        explanation.add_format(json_dt_format)

        # another FORMAT: explanation representation as JSon
        # Having JSon+datatable formats it's easy to get other formats like CSV,
        # datatable, ZIP, ... using helpers - adding JSon representation:
        explanation.add_format(
            explanation_format=f5s.GlobalFeatImpJSonFormat.from_json_datatable(
                json_dt_format
            )
        )

        return explanation

    def get_result(
        self,
    ) -> results.FeatureImportanceResult:
        return results.FeatureImportanceResult(
            persistence=self.persistence,
            explainer_id=ExampleMorrisSensitivityAnalysisExplainer.explainer_id(),
            chart_title=ExampleMorrisSensitivityAnalysisExplainer._display_name,
            h2o_sonar_config=self.config,
            logger=self.logger,
        )

Running BYOE recipe source code

# BYOE recipe explainer to be run
explainer_type = ExampleMorrisSensitivityAnalysisExplainer

# register the explainer
explainer_id = interpret.register_explainer(
    explainer_class=explainer_type
)

# run the explainer
interpretation = interpret.run_interpretation(
    dataset=dataset_path,
    model=model_to_be_explained,
    target_col=target_col,
    explainers=[explainer_id],
)

# get explainer result
result = interpretation.get_explainer_result(
    explainer_id=explainer_id
)

# get explanation data
data = result.data()
# get explanation chart
result.plot(file_path=os.path.join(tmpdir, "morris_sa_plot.png"))
# get explanation archive
result.zip(file_path=os.path.join(tmpdir, "morris_sa_archive.zip"))

Resources

• H2O Eval Studio documentation

• InterpretML

• interpretml/interpret GitHub repository
